Streak F4 32-bit 168MhzProcessor Racing Flight Controller

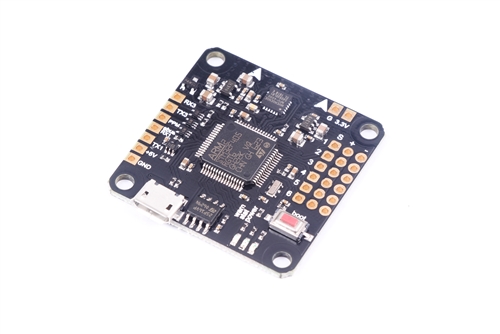

DragonPower Streak F4  32-bit 168MHz Processor Racing Flight Controller



Alternative Views:


Our Price: $68.00

Stock Status:In Stock
Product Code: DPVG-F4V12
Qty:

Description

High Performance and Very Easy to use FC.
Top quality and build. Very fast and precise.
For DShot support please flash the ESC firmware to BLHeli_S V16.42

F4 Feature:

1. Very silent operation.
2. No need to adjust PID, and no need additional adjustment for such like propellers the balance effect is tops even with damaged or broken props.
3. Support raceflight and betaflight firmware, default is betaflight, very easy to re flash.
4. Use MPU6000 Accelerometers and Gyros, fast and accurate
5. Gyro and MCU have 3.3V independent power supply
6. Has outputs for up to 6 motors (ESCs)
7. Three available hardware UART ports
8. Built in inverter for SBUS input
9. Very fast STM32F405 32-bit processor at 168MHz, 1Mb flash, 192kb ram
10. Micro USB connectivity using STM Virtual Communications Port
11. M25P16 16 Mbit, serial Flash memory, 75 MHz SPI bus interface
12. Support Blackbox function

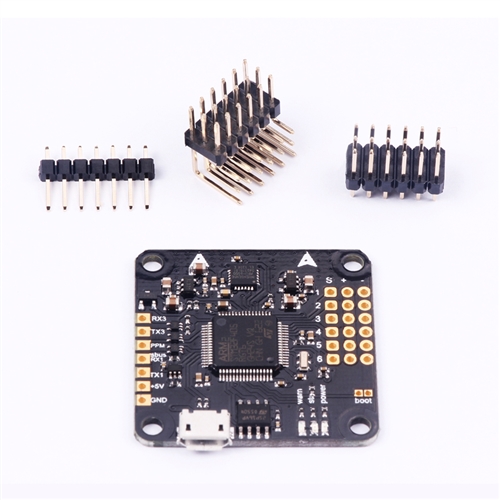

13. 6 x 3 pin through holes for ESC pin headers

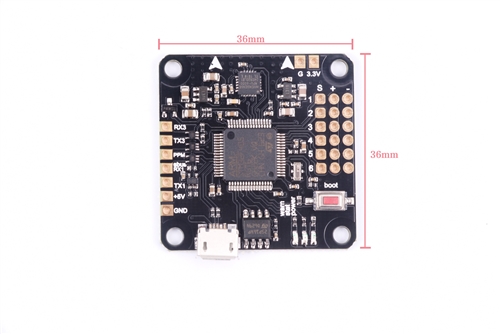

14. 36x36mm board, standard 30.5mm mounting holes for stacking
