Z2000 Brushless Motorised 3 Axis Camera Gimbal for Canon 5D MarkII
Z2000 3 Axis Brushless Motorised Camera Gimbal for Canon 5D MarkII ZeroUAV



Alternative Views:


Our Price: $5,126.00 Inc GST

Stock Status:In Stock
Availability:: Usually ship within 7 business days
Product Code: ZUAV-Z2000
Qty:

Description Technical Specs

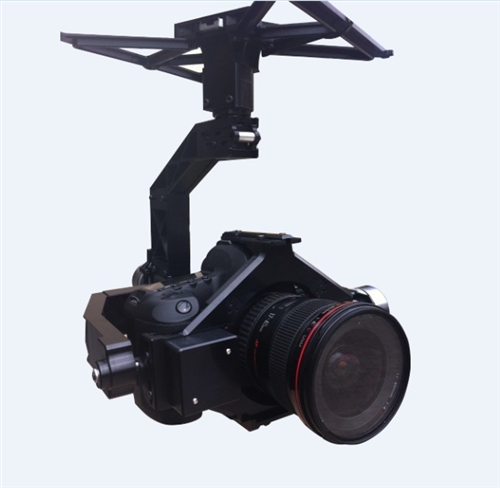

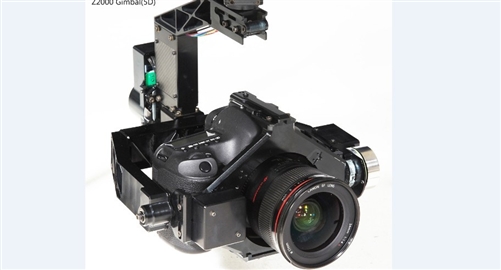

Zero UAV Z2000 Brushless Motorised 3 Axis Camera Gimbal
ZeroUAV Z2000 gimbal for Canon 5D Mark I-III
ZeroUAV Z2000 Gimbal Demo
Features
Optimized for Aerial Photography
The Z2000 is a professional grade 3-axis stabilized gimbal built specifically for the Canon 5D series of cameras (EOS 5D II & III) for aerial photography and videography use. Combined with Zero's Z-Attitude Sensor and Z-Controller, the Z2000 is a leap forward in autonomous 3-Axis DSLR camera stabilisation and provides a stronger guarantee for superb, professional quality aerial filming, advertising and photography.
3-AXIS Direct Drive Brushless Motor Gimbal specifically designed for the Canon 5D MARK II/III
The ZERO Z2000 is a professional motor brushless gimbal developed for commercial and industrial applications. The system utilizes DC brushless motors driven by a high-speed driver module in each axis, resulting in maximum stability and high precision minimizing vibration and wobble. Even in heavy wind, harsh conditions or in high-speed flight, stability and control of the camera will be maintained with the highest precision.
Handheld Shooting Supported

Combined with optional Z-Attitude unit, it can be independently mounted on the car, boat, helicopter or applied to shooting from the ground with handheld hardware to meet different shooting requirements.
Impressive Panoramic Image Acquisition

With this function, 360° panoramic images may be automatically taken with a single button press on the transmitter. Four layers in each direction, a total of 37 high-definition photos, may be automatically taken in only a minute. When the images have been stitched together it is relatively easy to get an impressive panorama!
100% Compatibility with the YS series of Autopilots

In order to get high-precision attitude correction, Z1400 gimbal works in harmony with the YS-X4-P or GEMINI professional flight controller. The autopilot sends real-time attitude data to the gimbal allowing it to fine-tune the stabilisation process and bring you an awesome flying experience.
Customized for Canon 5D Mark I and II Cameras, Supporting Multiple Lens Types

Based on the Canon 5D Mark II and similar large DSLR cameras, Zero Uav has specially developed this customized motor gimbal to get the best performance. Mounting hardware for the Canon 5D Mark III also comes with a package so that you can exchange your cameras at any time to fulfill different requirements. Different lenses are supported such as the Canon EF17-40MM f/4 L USM lens, The 24mm 1.8 prime lens, or any lens this then 98 mm in length (calculated from the camera lock). These lenses may be freely interchanged.
Multiple Lens-control Modes
Not only the 3-axis angle can be freely controlled, the gimbal also supports multiple lens orientation modes, you can freely switch the lens modes by transmitter to meet different shot requirements which makes the aerial filming and photography more free and easy.
3-axis Gimbal System, with 360° Continuous Rotation
The 3-axis Z2000 gimbal system has creative design for its mechanical structure design and each axis can rotate without any limitation. Stabilized range: Yaw direction continuous ±360° rotation, Pitch direction continuous ±360° rotation, Roll direction continuous ±360° rotation. By Tx, Yaw control could reach ±360°, the Pitch control could reach ±360° and the Roll control could reach ±30°.
Independent IMU Module with Built-in High Precision Gyros and Accelerometers
The IMU (Inertial Measurement Unit) module has built-in high-precision gyros and accelerometers to accurately stabilize the camera’s attitude and movement. Even in heavy wind, harsh conditions or in high-speed flight, stability and control of the camera will be maintained with the highest precision.
S-BUS & Common Radio System Supported
Currently the unit only supports Futaba S-BUS receiver control, it is possible however to purchase a PWM to SBUS switch module to use any common transmitter and receiver. Setup is quick and easy.
Controlled Three Axis Rotation Speed
The Zero Z2000 Gimbal 3-axis rotation control function is easy to apply. An excellent control algorithm ensures it has the highest precision rotational performance in the yaw, pitch and roll axes. Even if the aircraft is engaged in high speed rotation or climb maneuvers, the gimbal rotation speed is unaffected.
Fhll HD, Full-frame Image Resolution
Compared with mini digital cameras, DSLR cameras have unique advantages: multiple lens options, full frame sensors and high pixel definition ensure dynamic image quality in full HD video. The Z2000 gimbal makes full use of all these advantages in the air and allows your filming and photography to reach a whole new level.
Wireless Remote Follow-focus or Zoom Module Frovision
An extra-large space on the gimbal structure is reserved to install a wireless remote follow-focus or zoom module at a later date.
Easy Access to CF Card
One of the user-friendly features of the Z2000 is that the CF card can be inserted and extracted without dismantling the gimbal

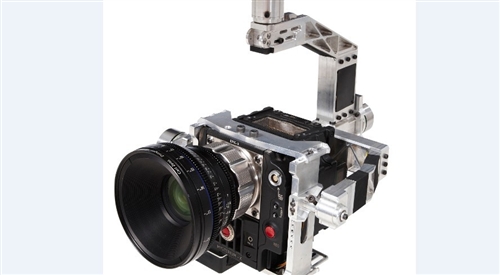

RED Series Camera Upgrade
The Z2000 has large 70 Watt motors and can be upgraded at a later time to mount heavier cameras such as the RED Epic or Scarlet
.
