RCCSKJ 2104 Min Power Box with 30A BEC
RCCSKJ - DragonRC 2104 Min Section Board Power box with 30A BEC




Our Price: $138.00

Stock Status:In Stock

Product Code: RCCSKJ2104
Qty:

Description

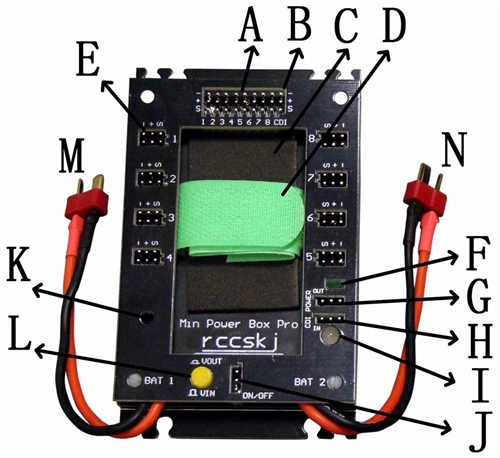

RCCSKJ 2104 Min Power Box with 30A BEC
Double power input to improve the stability of power supply, which can effectively avoids the accident cause by poor contact and unreliability of a single batteries. Compared with the traditional mechanical switch, integrated electronic switch has a higher security and stability. Input / output voltage display switch Nine channels for input, and sixteen channels for output.(every one channel input with two channels output ), one channel CDI remote cut off switch. Integrated CDI remote cut offt switch, making flying safer Independent CDI power supplyt. Receiver power is separate from the CDI power, thus eliminating interference from the CDI to the receiver. Integrated 30A BEC ( MXA: 40A ) using linear regulator makes the power pure, which can provide sufficient current to the servos. 4.8-9.7V output voltage, to provide for the different power requirements of different servos. Independent 5V linear regulator which provide a separate pure working power supply to the receiver. Five LEDs display the distribution board’s working states. Special safe place is designed for the placement of the receiver to avoid the accidental damage to the receiver. Optional voltage meter of the distribution board can display real-time input/output voltage

Working voltage: 7-13V
Steering current, voltage : 0-30A ,4.8-9 .7 V (factory voltage is 5.2V)
Weight: 80g
Volume: 116mm(long)*88mm(wide)*13mm(height)
Working temperature: -20℃ to 85℃.
