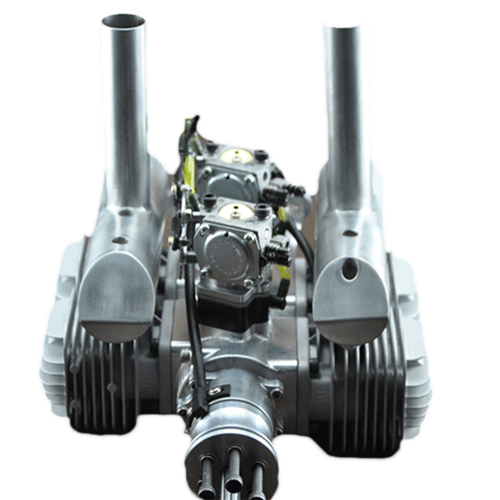

18-DLA128CC 4 Cylinder Gasoline Engine
DLA 128CC Quad Cylinder State of the Art Gasoline Engine for larger scale aircraft



Alternative Views:


Our Price: $2,198.00

Stock Status:In Stock

Product Code: DLA128Q
Qty:

Description Technical Specs Product Support/Videos

DLA128CC 4 Cylinder Gasoline Engine for Large Scale Aircraft.

Capacity: 128cc
Output: 13HP
Cylinder Bore/ Stroke: 37MM/30MM
Speed range: 1300-6600 RPM
Pulling force: 30KG/1000 Meter altitude
Cylinder arrangement: four boxer
Fuel: Gasoline + 2T synthetic oil
Lubrication Ratio: 25:1~30: 1(trial run)
40: 1~50:1(normal flying) 92# 93# gasoline 2T synthetic oil
Compression Ratio: 7.6:1
Propeller Recommended: 28*10,28*8 32*8 27*10 29*10,29*10
Spark Plug: DLA CM6,Iridium
Voltage: 6.6v-8.4v, 2 LiPo batteries recommended.

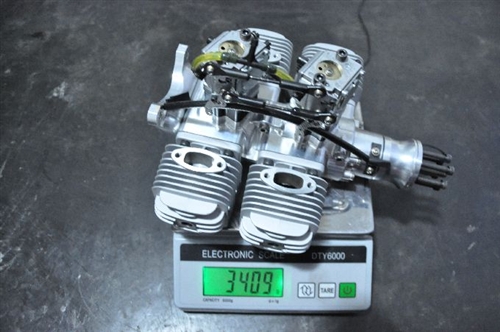

Weight: Main engine: 3260g Exhaust pipe: 126*2g Ignition: 180g standoffs: 22*4g

This engine is mainly used for fixed-wing with take-off weights (including Gasoline) not more than 18 KGS. Its crankcase, crankshaft, central screws are all made of high-performance materials by CNC processing method. With beautiful appearance, high-precision, drop resistance, fatigue resistance, good stability, strong power performance, 2 cylinders with independent ignition and independent fuel feeding.




DLA1128 Quad Cylinder motor test - courtesy of JSB Modellmotoren
DLA128cc Quad - courtsey of Lennimann
