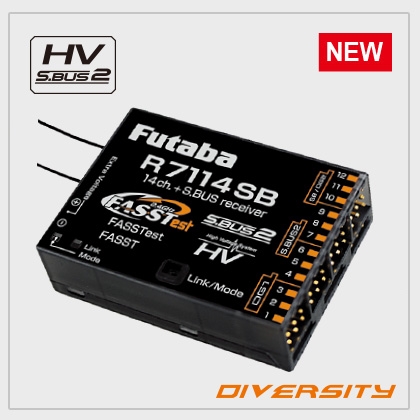

The R7114SB is Futaba's new receiver for high end models, with 14 PWM channels. The R7114SB can operate in FASST or FASSTest mode. It can be used with older transmitters or the latest telemetry enabled models. It is capable of both S-BUS and S-BUS2 operation. It has diversity aerials for better reception.

• 14 PWM channels
• High voltage (Up to 7.4V)
• FASST and FASSTest
• FASSTest telemetry capability
• S.BUS and S.BUS2 technology
• Diversity aerials
• Easy binding button
• Desgned for high-end models
• FASST Multi; normal mode or high speed mode

Specifications

• FASSTest-2.4GHz system(14CH/12CH mode)
• FASST-2.4GHz system (Multi-ch mode)
• S.BUS2 and S.BUS port and Linear 12 ch +Digital 2 ch for conventional system receiver
• Dual antenna diversity
• Size: 1.5 x 2 x 0.6 in. (37.0x50.2x15.9mm)
• Weight: 0.7 oz. (20.8g)
• Power requirement: 3.7V to 7.4V (Voltage range: 3.5 to 8.4V)
• Battery F/S Voltage: FASSTest:It sets up with a transmitter FASST: 3.8V *The Battery F/S voltage is set for 4-cell NiCd/NiMH battery. Battery F/S function doesn't work properly when other type battery is used.
• • Extra Voltage port: 0 ～ 70V DC
