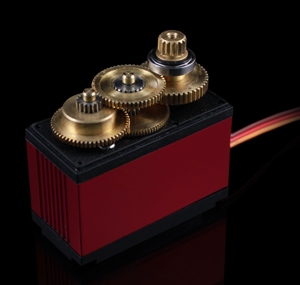

Power HD-1235MG Metal gear Digital High Voltage Servo
Alternative Views:
Our Price:
$
80.00
Stock Status:In Stock
Product Code:
PHD-1235MG
Qty:
Description
Technical Specs
Torque(6.0V): 35.0 kg-cm (486.06 oz/in)
Torque(7.4V): 40.0 kg-cm (555.50 oz/in)
Speed: 0.20 sec (6.0V) │ 0.18 sec (7.4V)
Operating Voltage：6.0 ~ 7.4 DC Volts
Weight: 165.0 g (5.82 oz)
Bearing Type：Ball Bearing x 2
Motor Type：DC Motor
Gear Type：Copper
Operating Temperature：-20℃~60℃
Working frequency：1520μs / 333hz
Size：59.5 x 29.5 x 55.0 mm ( 2.34 x 1.16 x 2.17 in)
Torque(6.0V): 35.0 kg-cm (486.06 oz/in)
Torque(7.4V): 40.0 kg-cm (555.50 oz/in)
Speed: 0.20 sec (6.0V) │ 0.18 sec (7.4V)
Operating Voltage：6.0 ~ 7.4 DC Volts
Weight: 165.0 g (5.82 oz)
Bearing Type：Ball Bearing x 2
Motor Type：DC Motor
Gear Type：Copper
Operating Temperature：-20℃~60℃
Working frequency：1520μs / 333hz
Size：59.5 x 29.5 x 55.0 mm ( 2.34 x 1.16 x 2.17 in)
Average Rating:
4
of 5
Total Reviews:
1
Write a review »
1 of 1 people found the following review helpful:
my new servo
December 16, 2015
Reviewer: Scott Edwards from maryborough, QLD Australia
great business guys, easy to deal with and wow fast delivery, thank you :) cant wait to deal with you again :)
Was this review helpful to you?
my new servo
