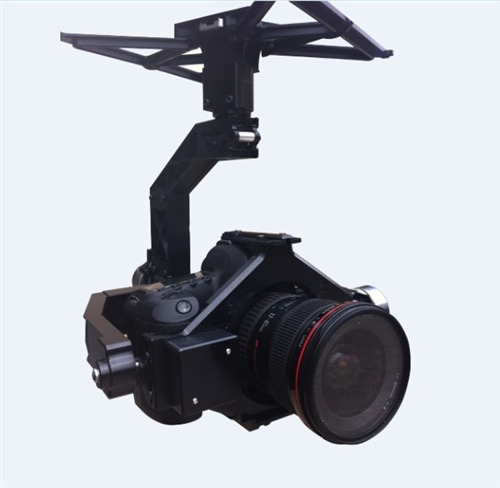

Z2000 Brushless Motorised 3 Axis Camera Gimbal for Canon 5D Mark II/III with Attitude module
Product Code: ZUAV-Z2000A
Our Price: $5,800.00
Description
Features
- Z2000 PROFILE
As known to us all, EOS 5D Mark II/III first realized taking the Full HD film (1920×1080 Full HD), and ZERO GIMBAL Z2000 is the professional motor gimbal with excellent performance and specially designed for camera 5D mark II/III. Combining Zero Z2000 gimbal and such big SLR camera 5D Mark II/III will make the filming photography reach a perfect stabilization level and meanwhile provide a stronger guarantee for professional aerial photography, film photography and advertising e.t.
3-AXIS MOTOR GIMBAL SPECIALLY DESIGNED FOR 5D MARK II/III
ZERO GIMBAL Z2000 is the professional motor gimbal with excellent performance and specially designed for camera 5D mark II/III, and all of the 3 axis adopt high-precision brushless DC motor and high-speed driving modules independent developed by ZERO UAV which have high stability, high precision, low wobble, high torque performance. Even if aircrafts are in a fast-speed flight, it can still stabilize and control the camera equipment precisely with highest stability, so video output can reach the best effect without any jello or drift.
SAFETY PARACHUTE SUPPORTED
Working with the ZERO professional autopilot, the parachute coming with ZERO entire system will be opened automatically in emergency which is another safety shield besides the Octo redundancy.
INDEPENDENT HAND-HELD SHOOTING SUPPORTED
Optional hand-held accessories are optional for supporting independent handheld shooting. Meanwhile, with the attitude controller unit together, it can be mount on the car, boat and helicopter to meet the different shooting requirments.
OUTSTANDING PANORAMIC IMAGE TAKING FUNCTION
Outstanding panoramic image with 360° can be automatically taken via one key on transmitter. With this function, 4 layers, a total of 37 high-definition photos may be obtained in one minute to make a panoramic picture.
COMPATIABLE WITH YS SERIES FLIGHT CONTROLLER
Z2000 gimbal is perfectly compatible with YS series professional flight controller. The autopilot can transmit attitude information to gimbal by general cable. Combining YS autopilot and Z2000 gimbal will bring you awesome flying experience.
CUSTOMIZED CAMERA CANON 5D MARK II/III, DIFFERENT LENS INTERCHANGEABLE
Based on Canon 5D Mark II such big SLR camera, Zero specially developed the customized motor gimbal to get the best gimbal performance. Meanwhile, it can support Canon 5D Mark III just by selecting the corresponding mounting hardwares. Different lens can be changed: Canon EF17-40MM f/4L usm lens, camera lens not more than 98 mm in length (calculate from the camera lock) maybe freely interchangeable.
ROCKER-ARM FUNCTION IN THE AIR
Controlled by ZERO autopilot, rocker-arm function in the air can be available, that is aircraft can repeat the flying route for several times being controlled by autopilot, by which you can easily get the accurate shot with higher standards.
3-AXIS GIMBAL SYSTEM, WITH 360° CONTINUOUS ROTATION
The 3-axis Z2000 gimbal system has creative design for its mechanical structure design and each axis can rotate without any limitation. Stabilized range: Yaw direction continuous ±360° rotation, Pitch direction continuous ±360° rotation, Roll direction continuous ±360° rotation. By Tx, Yaw control could reach ±360°, the Pitch control could reach ±360° and the Roll control could reach ±30°.
INDEPENDENT IMU MODULE WITH BUILT-IN HIGH-PRECISION GYRO
The IMU module has built-in high-precision gyro ensuring more precise attitude-stabilized performance, even though in heavy windy days or harsh conditions, it is easy for Zero Z2000 gimbal to keep the photographic equipment stabilized and achieve a good performance. .
S-BUS RECEIVER SUPPORTED
Currently it only supports Futaba S-BUS receiver control, but customer can purchase extra PWM switch SBUS module to use the common transmitter and receiver , the setup is very easy and fast.
CONTROLLED 3AXIS ROTATION SPEED
Zero Z2000 Gimbal 3-axis rotation control function is easy to apply, excellent control algorithm makes it have the high precision performance of the axis rotation in yaw, pitch and roll direction. It has no any effect on the gimbal rotation speed even if the copter is high-speed rotation or quick lifting.
PERFECT COMPATIBLE WITH ZERO-E1100 AIRCRAFT
Z2000 is perfectly compatible with ZERO-E1100 aircraft， E1100 is the professional Octo aircraft specially designed for commercial photography and model enthusiasts and it has enhanced safety, high stability, heavy load performance.
WIRELESS REMOTE FOLLOW FOCUS MODULE EXTENDED
Extra-large space is reserved which may extend wireless remote follow focus module later on.
CF CARD DIRECTLY OBTAINED
CF card can be directly obtained without dismantling gimbal.
Z2000 GIMBAL MAY BE UPGRADED TO RED FOLLOWING
Z2000 has big motor with 70W power, so it can be upgraded to mount RED camera following
