E1100-V2 Octo Copter Complete RTF
Product Code: ZUAV-E1100-V2C
Our Price: $6,688.00
Description
New Generation RTF System E1100-V2 Octo-rotor Release　
ZERO UAV has been engaged in creating advanced and innovative products. E1100 has gained much praise from customers due to its excellent performance and multiple protection in emergency. To make the product more perfect, the whole system of E1100 is developed a lot covering every aspect from the appearance to the detailed design making the whole system more professional. The new E1100-V2 system consisting of Gemini auto pliot and brushless gimbal Z2000 or Z1400.
ZERO-E1100 E1100 Octo RTF Eletronics Profile
ZERO-E1100 multi-rotor system is a professional ready to fly solution, perfectly integrated
with Gemini autopilot, high-end brushless gimbal Z2000/Z1400 and professional Octo aircraft
E1100. It is quite a secure and stabilized aerial photography platform and particularly made
for industry application, such as aerial film/TV, advertising photography and so on.
Features
Parachute protection in emergency
Aerial rocker-arm function
360° panorama taking
(just one switch on Tx to auto-complete panorama)
Lens Automatic dodging landing gear
(gimbal carefree: one switch on Tx or from autopilot GCS)
One motor failure protection
Portable frame
High circuit-integrated design
Z2000 3-Axis Brushles Gimbal for 5D MarkII/III Camera
The Z2000 is a professional grade 3-axis stabilized gimbal built specifically for the Canon
5D series of cameras (EOS 5D II&III) for aerial photography and videography use.
Combined with Zero's Z-Attitude Sensor and Z-Controller, the Z2000 is a leap forward
in autonomous 3-Axis DSLR camera stabilization and provides a stronger guarantee for
professional aerial film, advertising and photography.
Features
3-axis stabilization
Shutter control
Record control
Controlled Angle Accuracy: ±0.044°
Pan axis control: ±360° continuous rotation
Tilt axis control: ±360° continuous rotation
Roll axis control: ±40°
Supported camera:
Canon 5D MARKII; Canon 5D MARKIII (coming with free accessory for MarkIII)
Supported lens:
Canon EF17-40MM f/4L usm, 24mm/35mm, 35mm<zoom<98mm, Sigma 12-24mm 1:4.5-5.6 etc.
Z1400 3-axis Brushless Gimbal for GH3 Camera
Synchronization with the Z2000 (5D) gimbal, ZERO UAV publishes the lightweight brushless
gimbal Z1400 at the same time, which is perfect carrying top EVIL camera GH3. Combined
with ZERO UAV precise gimbal control algorithm, Z1400 will bring you an unique experience
in the aerial photography. Being compatible with YS series autopilot will be more safety and stabilized.
Features
3-axis stabilization
Record control
Controlled Angle Accuracy: ±0.044°
Pan axis control: ±360° continuous rotation
Tilt axis control: ±360° continuous rotation
Roll axis control: ±40°
Supported camera: Panasonic GH3
Supported lens:
Lumix G 14mm f/2.5 , Lumix G 20mm/F1.7, Panasonic LEICA 25/1.4,
OLYMPUS M.ZUIKO DIGITAL ED12mm f/2.0 etc.
Gemini Industrial Multi-rotor Autopilot (Double Redundancy FC)
Features
Aerial rocker-arm function with 256 waypoints available
Innovative high stable of FPV mode
Precise waypoints, auto-takeoff/landing, target lock, click&go etc.
Supporting 550D, 600D, 5D mark II ETC. camera manual exposure
Mobile phone,tablet/PC portable device controlling flying
Supporting data configuration on phone/tablet handheld ground station
Servo gimbal and Zero brushless gimbal stabilization
Manual stabilization mode, GPS mode (Auto Hover /Auto Navigation /Auto Go Home/Landing),
phone attitude mode, phone RC mode, aerial rocker-arm mode and auto-enable parachute in emergency mode available
Power calculation module and data link module extended
Autopilot status warning by Led such as GPS position lock, low voltage alarm, attitude error alarm etc.
Firmware upgrade by USB cable or directly download from Android market
Features
- FEATURES
Profile
ZERO-E1100 multi-rotor system is a professional ready to fly solution, perfectly integrated with YS-X4-P autopilot, high-end brushless gimbal Z2000/Z1400 and professional Octo aircraft E1100. It is quite a secure and stabilized aerial photography platform and particularly made for industry application, such as aerial film/TV, advertising photography and so on.
COMPATIBLE WITH THE PROFESSIONAL AUTOPILOT
ZERO-E1100 system has super stabilization based on the professional autopilot YS-X4-P which consist of high-precision sensor and applies the advanced temperature compensation algorithm and industrialization calibration algorithm, meanwhile, the ground supervising station software will come with the whole system together to provide a real-time flying feedback, so the stable, efficient and reliable abilities of the autopilot can supply a solid support for your in outside photography mission.
PERFECTLY MATCHED WITH ZERO HIGH-END GIMBAL
By combining ZERO high-end brushless gimbal Z2000/Z1400 and the specialized autopilot, it is very easy for customer to achieve amazing video effect with no drift or jello and the moving of lens in each axis is fairly soft, such features may have the whole system make a super performance.
PARACHUTE PROTECTION IN EMERGENCY
Working with the YS professional autopilot, one cool feature is quite easy to access--Parachute Protection. The parachute coming with entire system will be opened automatically in emergency or users can open it by transmitter in any time which is another safety shield besides the Octo redundancy.
ROCKER-ARM FUNCTION IN THE AIR
Rocker-arm function in the air can be available, that is to say aircraft can repeat the preset flying route and repeat the shooting for several times being controlled by autopilot, by which you can easily get the accurate shot with higher standards.

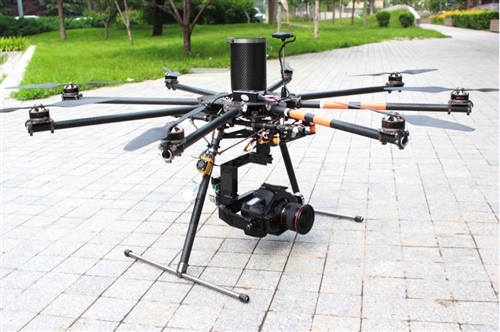

PROFESSIONAL OCTO AIRCRAFT
E1100 is the Professional Octo aircraft primarily made for commercial photography and model enthusiasts and it has enhanced safety, high stability, heavy load performance. Being compatible with YS professional autopilot and Z2000/Z1400 high-end gimbal series can achieve the precise hover, waypoints flying and follow me features.
360° PANORAMA TAKING（AUTOMATIC DODGING LANDING GEAR）
To avoid blocking the view of the camera lens and freely get a perfect 360° view, the unique and user-friendly feature Gimbal Carefree is added based on the professional autopilot, that is to say gimbal pilot can control the craft and gimbal rotate synchronously making smooth shooting in all directions possible and the frame part will never be seen in your shot, meanwhile, the aircraft still moves forward and flies according to the preset flying route.
ONE MOTOR FAIL PROTECTION
Generally, multi-rotor will crash damaged without any power output, due to imbalanced mechanical structure and external environment. The humanistic protection function from YS autopilot, in Attitude or GPS Mode, keeps attitude under control even with any one power output failed and highly reduces crash risk.
PORTABLE FRAME
Due to the large size of the Octo-rotor, the frame of E1100 is particularly designed as foldable structure, there are special quick disassembly part at the bottom of the frame arm, so that the frame arm can be foldable via Nut disassembly and easy to carry.
HEAVY-LIFT AIRCRAFT
ZERO-E1100 has an advantage of heavy-lift, the maximum takeoff weight can reach to 10kg which is very convenient to carry large photographic equipment.
HIGH CIRCUIT-INTEGRATED DESIGN
From batteries to electronic components, motors and ESC, all of the circuits are integrated into center frame or frame arms, which greatly simplifies the wiring，reduces the possibility of malfunction and helps considerably with quick disassembly. Meanwhile the whole appearance looks simple and neat and makes its performance more safe and reliable.
HIGH PERFORMANCE BRUSHLESS MOTORS
E1100 adopts special brushless motors with high performance such as low noise and vibration, smooth turning, which greatly improves the stability and performance of aircraft and simplifies maintenance.
HIGH EFFICIENT CUSTOMIZED PROPELLER
The propellers are customized and made of carbon fiber which have the characteristic of exquisite appearance, light weight, high efficiency, and high strength etc.
QUICK ASSEMBLY AND DISASSEMBLY LANDING SKID
The high strength landing skid consist of carbon fiber material, which can support large weights and ensures tenacity and hardness. It is very convenient to carry and transport with simple assembly and disassembly of the E1100 Landing skid.
| Profile | |
 |
ZERO-E1100 multi-rotor system is a professional ready to fly solution, perfectly integrated with YS-X4-P autopilot, high-end brushless gimbal Z2000/Z1400 and professional Octo aircraft E1100. It is quite a secure and stabilized aerial photography platform and particularly made for industry application, such as aerial film/TV, advertising photography and so on. |
| COMPATIBLE WITH THE PROFESSIONAL AUTOPILOT | |
|
|
ZERO-E1100 system has super stabilization based on the professional Gemini autopilot which consist of high-precision sensor and applies the advanced temperature compensation algorithm and industrialization calibration algorithm, meanwhile, the ground supervising station software will come with the whole system together to provide a real-time flying feedback, so the stable, efficient and reliable abilities of the autopilot can supply a solid support for your in outside photography mission. |
| PERFECTLY MATCHED WITH ZERO HIGH-END GIMBAL | |
 |
By combining ZERO high-end brushless gimbal Z2000/Z1400 and the specialized autopilot, it is very easy for customer to achieve amazing video effect with no drift or jello and the moving of lens in each axis is fairly soft, such features may have the whole system make a super performance. |
| PARACHUTE PROTECTION IN EMERGENCY | |
 |
Working with the YS professional autopilot, one cool feature is quite easy to access--Parachute Protection. The parachute coming with entire system will be opened automatically in emergency or users can open it by transmitter in any time which is another safety shield besides the Octo redundancy. |
| ROCKER-ARM FUNCTION IN THE AIR | |
 |
Rocker-arm function in the air can be available, that is to say aircraft can repeat the preset flying route and repeat the shooting for several times being controlled by autopilot, by which you can easily get the accurate shot with higher standards. |
| PROFESSIONAL OCTO AIRCRAFT | |
 |
E1100 is the Professional Octo aircraft primarily made for commercial photography and model enthusiasts and it has enhanced safety, high stability, heavy load performance. Being compatible with YS professional autopilot and Z2000/Z1400 high-end gimbal series can achieve the precise hover, waypoints flying and follow me features. |
| 360° PANORAMA TAKING（AUTOMATIC DODGING LANDING GEAR） | |
 |
To avoid blocking the view of the camera lens and freely get a perfect 360° view, the unique and user-friendly feature Gimbal Carefree is added based on the professional autopilot, that is to say gimbal pilot can control the craft and gimbal rotate synchronously making smooth shooting in all directions possible and the frame part will never be seen in your shot, meanwhile, the aircraft still moves forward and flies according to the preset flying route. |
| ONE MOTOR FAIL PROTECTION | |
 |
Generally, multi-rotor will crash damaged without any power output, due to imbalanced mechanical structure and external environment. The humanistic protection function from YS autopilot, in Attitude or GPS Mode, keeps attitude under control even with any one power output failed and highly reduces crash risk. |
| PORTABLE FRAME | |
 |
Due to the large size of the Octo-rotor, the frame of E1100 is particularly designed as foldable structure, there are special quick disassembly part at the bottom of the frame arm, so that the frame arm can be foldable via Nut disassembly and easy to carry. |
| HEAVY-LIFT AIRCRAFT | |
 |
ZERO-E1100 has an advantage of heavy-lift, the maximum takeoff weight can reach to 10kg which is very convenient to carry large photographic equipment. |
| HIGH CIRCUIT-INTEGRATED DESIGN | |
 |
From batteries to electronic components, motors and ESC, all of the circuits are integrated into centre frame or frame arms, which greatly simplifies the wiring，reduces the possibility of malfunction and helps considerably with quick disassembly. Meanwhile the whole appearance looks simple and neat and makes its performance more safe and reliable. |
| HIGH PERFORMANCE BRUSHLESS MOTORS | |
 |
E1100 adopts special brushless motors with high performance such as low noise and vibration, smooth turning, which greatly improves the stability and performance of aircraft and simplifies maintenance. |
| HIGH EFFICIENT CUSTOMIZED PROPELLER | |
 |
The propellers are customized and made of carbon fiber which have the characteristic of exquisite appearance, light weight, high efficiency, and high strength etc. |
| QUICK ASSEMBLY AND DISASSEMBLY LANDING SKID | |
 |
The high strength landing skid consist of carbon fiber material, which can support large weights and ensures tenacity and hardness. It is very convenient to carry and transport with simple assembly and disassembly of the E1100 Landing skid. |
