Description

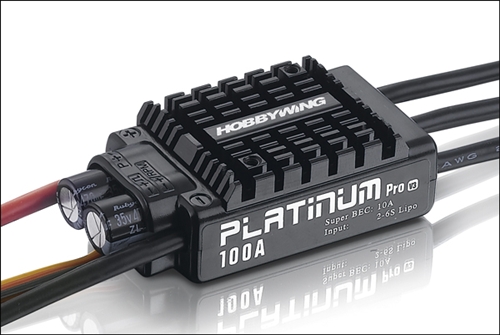

HW 100A V3 aircraft system Platinum series professional
weight w/o fan 104g and with fan 110g
Features
- High-performance microprocessor with the operating frequency up to 50MHz brings excellent compatibility (with most motors in the market)
and high driving efficiency.
- The maximum motor speed can reach 210000 RPM (for 2-poles), 70000 RPM (for 6-poles) and 35000 RPM (for 12-poles).
- Multiple flight modes: Fixed Wing Airplane/ Heli with Governor Off/ Heli with Governor (Elf) / Heli with Governor Store.
- Adjustable throttle range, compatible with various transmitters. It
brings smooth, soft & linear speed adjustment and rapid throttle
response.
- Microprocessor powered by independent DC regulator has better
anti-interference performance, which greatly reduces the risk of losing
control.
- Built-in high-efficient & high-power (switch mode) BEC can make
the output voltage switched among 5.2V / 6.0V / 7.4V / 8.4V. (*For the
specific output voltage, please refer to the parameter list below.)
- Brand new governor program, easy to operate; and its excellent
speed-governing effect can make big rotor blades more stable even under
rapid load change.
- â€Restart in auto rotation" can manually interrupt the auto rotation
and quickly restart the motor to avoid crashes caused by incorrect
operations.
- Independent output port for RPM (that is: motor speed) signals
.
- Compatible LCD program box (*optional accessory), its simple and
visual interface allows users to set/revise all the ESC parameters
easily. (For detailed information, please refer to User Manual of LCD
Program Box.)
- Upgradeable firmware, you can upgrade the ESC after connected it to a PC via the USB cable on the program box.
- The independent port, for connecting the program box and setting
parameters, can also be the output port of the running status data of
the ESC. When coordinating with the data transmission module, it can
make the real-time data monitoring and logging possible.
- Multiple protection features including input voltage abnormality
protection/ low-voltage cutoff protection/ throttle signal loss
protection effectively prolong the service life of the ESC.
