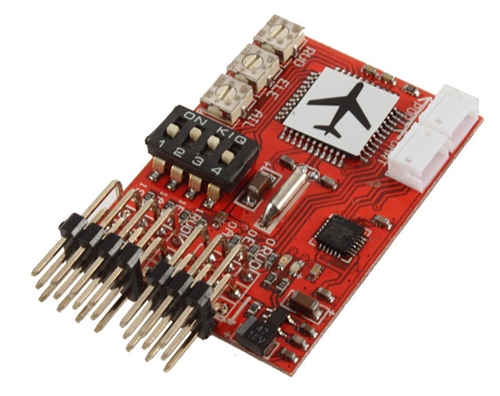

Fixed Wing Flight Controller
Product Code: FNT-FWFC
Our Price: $39.00
Description
Functions:
1. Stable flight: In enhanced-stability mode, the gyroscope automatically
adjusts to compensate for ailerons, elevators,and rudders. This
enhances wind-resistance capability and reduces speed failure to allow
for stable flight. 3D flights such as inverted flight, knife edge flight,
and prop hanging flight become easy and do not compromise the controllability
of airplanes.
2. Aerobatic flight assistance: Aerobatic flight modes, besides facilitating
stability of flight, feature the flight locked function by
high-precision, digital gyro automatically locking the channels of
Aileron, Elevator, and Rudder. This function makes inverted flight, knife edge flight, prop hanging flight, and even 360-degree rotation
without compromise. It allows a more accurate flight control with
flexibility at the same time. Take off and landing become very easy, For maiden flight if center of gravity is not quite right, the difficult
flight will be made easy to control with the help of the flight controller.
3. Independent gyro gain adjustment potentiometer and the algorithm of
software gyro gain make the gyro perform its best automatically.
4. 4-digit DIP switcher makes the functional settings for board become easy and convenient.
5.Controlling of flight mode is through a channel assigned on the remote. Test the flight modes at hige altitude to make sure it is functioning properly on first flight. Have a feel of the different flight modes. This flight controller can be used to hone and
and improve your flying skills.
6. Red and blue LED lights indicate the flight mode and if the control suffaces are opposite.
7. Its small size of 30x42mm, the weight of 6g, and perfect configuration
make it easily to be installed and used in any size of planes.
8. lt supports various types of fixed-wing, flying-wing,and V-tail airplanes.
Technical Specifications:
- Dimension: 30 x 42 mm
- Weight: 6 g
- Voltage: 4-9 V DC
- Current:40 MA(max)
- Sample Rate of Gyro: 2 KHz
- PWM Input: 50Hz PMW
- PMW Output:50Hz PMW
- Operating temperature: -25℃ to 80℃
