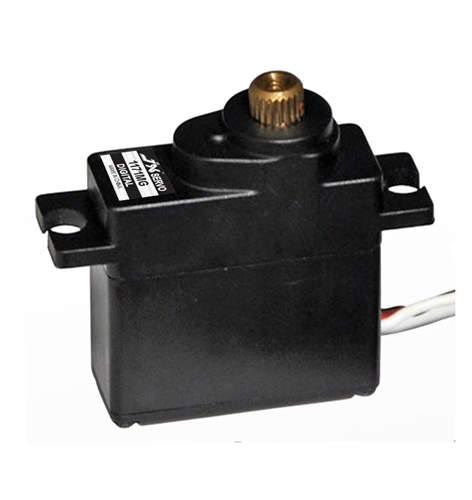

JX PDI-1171MG Digital Core, 3.0/3.5kg/cm Metal Gear Mini Servo
Product Code: JX-PDI1171MG
Our Price: $18.00
Description
PDI-1171MG mini Servo
Dead band: 1μs
Working frequency: 1520μs / 300hz
Motor: Digital Core
Operating Voltage: DC4.8~6.0 V
Operating Speed (4.8V): 0.13sec/60°
Operating Speed (6V): 0.11 sec/60°
Stall Torque (4.8V): 3.0kg.cm (42 oz/in)
Stall Torque (6V): 3.5 kg.cm (49 oz/in)
Dimensions:29.5x11.6x30.2cm/1.17x0.46x1.20in
Weight: 17.5 g (0.61oz)
Connector Wire Length: JR 180 mm (7.08in)
