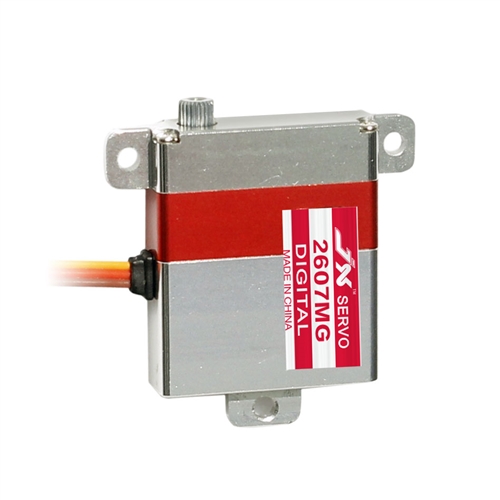

JX PDI-2607MG Digital, 5.85/7.21kg/cm Metal Gear Mini Flat Servo
Product Code: JX-PDI2607MG
Our Price: $46.00
Description
FEATURE: Dead band: 2μs
-- High performance programmable digital servo
-- High-precision Taiwan-made aluminium gears with hard anodizing
-- Full CNC aluminium Shell structure
-- Dual ball bearings
SPECIFICATIONS:
Control System: +Pulse Width Control
Working frequency: 1520μs / 330hz
Operating Voltage: DC4.8~6.0 V
Operating Temperature Range: -10 to + 60°C
Operating Speed (4.8V): 0.16sec/60°
Operating Speed (6.0V): 0.13 sec/60°
Stall Torque (4.8V): 5.85 kg.cm (81.81 oz/in)
Stall Torque (6.0V): 7.21 kg.cm (100.15 oz/in)
Potentiometer Drive: Direct Drive
Dimensions: 30.0X10.0X35.5mm /1.18 X0.39X1.40 in
Weight: 26.20 g (0.92oz)
Connector Wire Length: JR 220 mm
Bearing: 2BB
