SPT70HV-180, 70kg, Large torque, Large angle, Metal gear/Digital servo for Large 1/5 RC Cars

Product Code: SPT70HV-180

Our Price: $83.00

Description

SPT70HV-180 - Specs

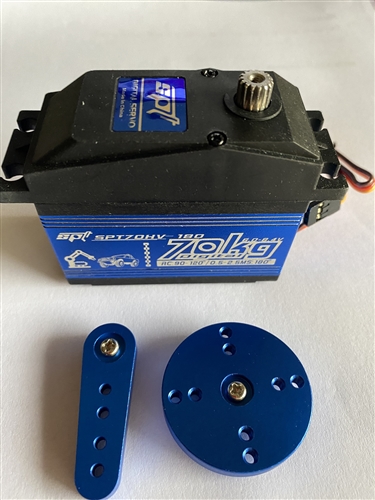

2 pcs of metal servo horns are included. No plastic horns for this big one!

Potentiometer: Mechanics Motor: Core Voltage Range: 4.8V/6.0V/8.4V Neutral Point: 1500Î¼s Signal Frequency: 330Hz PWM Voltage: 3.3V-5.0V PWM Voltage: 3.3V-5.0V Feedback Angle: No Operating Temperature: -10â„ƒ-50â„ƒ Cycle: 20ms Dead band: 4Î¼s Default Direction: CCW Yes / no Lock: NLock Remote control Angle: 90Â° 500-2500Î¼s Angle: 180Â° / PWM Quiescent Current: 60mAh Rated Current: 2A Blocking Current: 4.5A Weight / Dimensions: 200g / 65.7X30X57mm Output Gear: Savox0236 15T Gear Material: All Metal Gear Shell Material: Half Aluminum Shell Bearing: 2BB Connector Wire Length: 260MM line Definition: Brown-/Red+/Orange s Operating Speed:

6.0V/ 0.20''/60Â°

7.4V/ 0.16''/60Â°

Stall Torque:

6.0V/56 kg.cm

7.4V/72 kg.cm

Features
