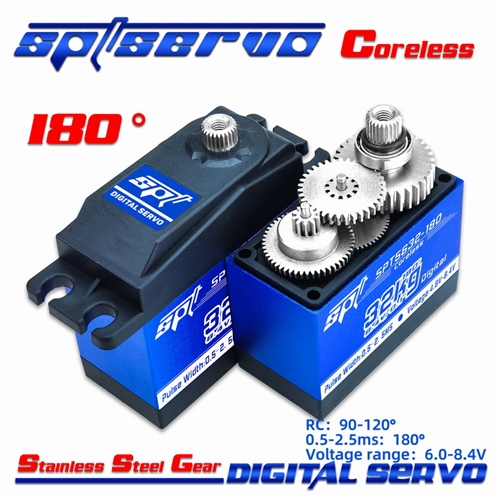

SPT5632-180 32kg Servo Large torque, Large angle, Metal gear Digital coreless servo

Product Code: SPT5632

Our Price: $52.00

Description

SPT5632-180

Brand: SPT Servo
Potentiometer: Mechanics Motor: Coreless Voltage Range: 4.8V/6.0V/8.4V Neutral Point: 1500Î¼s Signal Frequency: 330Hz PWM Voltage: 3.3V-5.0V PWM Voltage: 3.3V-5.0V Feedback Angle: No Operating Temperature: -10â„ƒ-50â„ƒ Cycle: 20ms Dead band: 2Î¼s Default Direction: CW Yes / no Lock: No Lock Remote control Angle: 90Â° 500-2500Î¼s Angle: 180Â° / PWM Quiescent Current: 10mAH Rated Current: 1.5A Blocking Current: 2.5A Weight / Dimensions: 58g / 40.5*20*37.5mm Output Gear: Futaba 25T Gear Material: All Metal Gear Shell Material: Half Aluminum Shell Bearing: 2BB Connector Wire Length: 260MM line Definition: Brown-/Red+/Orange s Operating Speed:

4.8V/0.16 ''/60Â°

6.0V/0.13 ''/60Â°

7.4V/0.10 ''/60Â°

Stall Torque:

4.8V/20.7 kg.cm

6.0V/25 kg.cm

7.4V/32 kg.cm

Features
